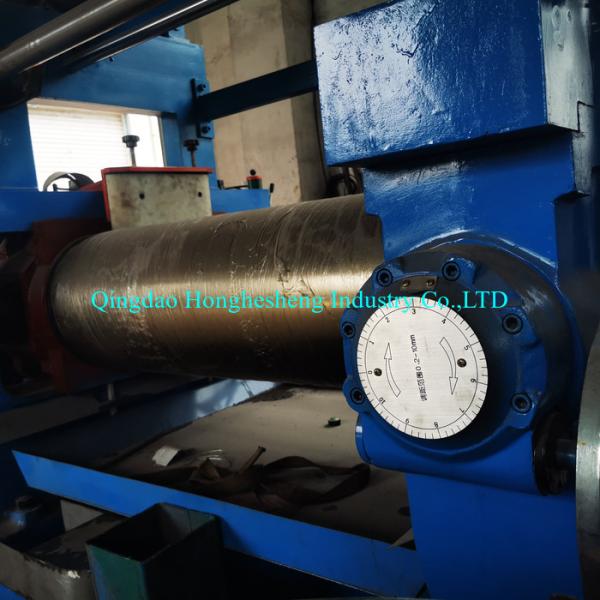

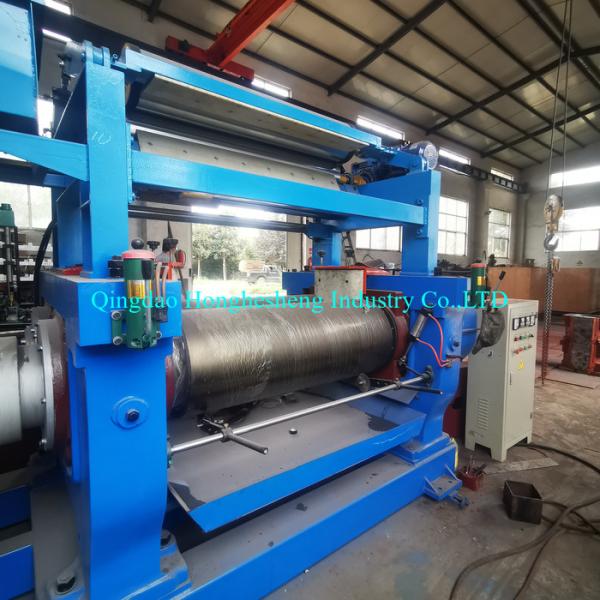

CE ISO Two Roll Rubber Open Mixing Mill 18"X18"

Brand Name : honghesheng

Model Number : XK450

Certification : CE

Place of Origin : CHINA

MOQ : 1 SET

Price : USD25000-6000/SET

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200SETS/MONTH

Packaging Details : wood package /20/40GP/HC

After-sales service provided : Engineers available to service machinery overseas,Field installation,commissioning and training,Video technical support

Type : Open Mixing Mill

Roller hardness : 50~60HRC

Bush : nylon bush,bearing bush,ball bearing Bush

Voltage : 380V,Customer's Request,380V/50HZ,220/380V,AC380V

Power(w) : 37kw,4.5KW,20KW,5KW for lab two roll mill

Weight : 5200kgs,1000kg,2T

Dimension(l*w*h) : 1100*700*1200mm,1226x830x1295mm,1*1.1*1.4(M),1100*650*1500,1160*920 *1370mm

Warranty : 1 Year

Condition : New

Contact Now

CE/ISO Factory sale Two Roll Rubber Open Mixing Mill 18"x18"

Application

This machine is mainly used in Rubber & Plastic Product factory for Natural Rubber Mixing(plasticating),Raw Rubber and Compound mixing,rubber warm-up mixing and pressing sheet.

consist of Base, frame, the rollers, drive system, roll gap adjustment device, heating and cooling device, safety brake, lubrication system, electric control system, motor and reducer etc.

Technical parameters:

Version XK-160 XK-250 XK-300 XK-400 XK-450 XK-560 XK-660
Roll diameter(mm) 160 250 300 400 450 560 660
Working length of rolls(mm) 320 620 750 1000 1200 1530 2130
Front roll surface speed(m/min) 8.99 15.3 15.1 18.65 24.32 27.72 28.6
Friction ratio 1:1.35 1:1.1 1:1.27 1:1.27 1:1.27 1:1.2 1:1.24
Max.nip (mm) 4 8 8 10 15 15 15
Capacity per.batch (kg) 1-2 10-15 15-20 18-35 25-50 35-50 165
Motor power (kw) 5.5 18.5 22 37 55 90 245
Overall dimensions(mm)

1160*920

*1370

3120*1322

*1500

3580*1550

*1695

4350*1850

*1780

5670*2390

*1670

5845*2284

*1978

7465*3662

*2080
Weight(kg) 1000 4000 5200 7600 12000 23000 49000

CE ISO Two Roll Rubber Open Mixing Mill 18"X18"CE ISO Two Roll Rubber Open Mixing Mill 18"X18"

CE ISO Two Roll Rubber Open Mixing Mill 18"X18"CE ISO Two Roll Rubber Open Mixing Mill 18"X18"CE ISO Two Roll Rubber Open Mixing Mill 18"X18"CE ISO Two Roll Rubber Open Mixing Mill 18"X18"

CE ISO Two Roll Rubber Open Mixing Mill 18"X18"

CE ISO Two Roll Rubber Open Mixing Mill 18"X18"

Features:

1.The rolls of machine adopts titanium alloy chilled cast iron,its surface is smooth and hard,and the cavity is processed,water cooling way makes the surface temperature of the rolls be balance;

2.This machine adopts hardened reducer;

3.This machine adopts bearing,lubrication by grease or thin oil;

4.The roll gap adjustment method can be manual or electrical;

5.The electrical system adopts LS Components imported from South Korea;

6.This machine is set emergency stop button,easier operation than the traditional brake method,safety and reliable.

CE ISO Two Roll Rubber Open Mixing Mill 18"X18"

CE ISO Two Roll Rubber Open Mixing Mill 18"X18"

CE ISO Two Roll Rubber Open Mixing Mill 18"X18"CE ISO Two Roll Rubber Open Mixing Mill 18"X18"CE ISO Two Roll Rubber Open Mixing Mill 18"X18"

CE ISO Two Roll Rubber Open Mixing Mill 18"X18"
