Dia 360mm Three Roll Rubber Calender Machine Rubber Sheet Calendering Machine

Product Categories

Open Mill Rubber Mixing [204]
Rubber Kneader Machine [142]
Plate Vulcanizing Press [368]
Waste Tyre Recycling Plant [402]
Rubber Tile Making Machine [139]
Rubber Calender Machine [80]
Tyre Tube Making Machine [34]
Rubber Extruder Machine [54]
Vulcanization Tank [210]
Batch Off Cooler [54]
EVA Sheet Making Machine [156]
Rubber Bale Cutter [63]
Green Scrap Rubber Steel Separator [16]
Rubber Lab Equipment [64]
Reclaimed Rubber Machine [6]
Automatic Batching System [8]

Qingdao Honghesheng Industry Co., Ltd.

Contact Now

Dia 360mm Three Roll Rubber Calender Machine Rubber Sheet Calendering Machine

Brand Name : HHS

Model Number : XY-3L-630-2430

Certification : CE/ISO

Place of Origin : CHINA

MOQ : 1 set

Price : USD:5000-90000 /SET

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100 sets/month

Delivery Time : 30 SETS/MONTH

Packaging Details : wood package/20-40 gp

colour : all

about weight : 4.8t-126t

motor power : 15kw-280kw

roller diameter : 230-810

advantage : high efficiency

Contact Now

Three Roll Rubber Calender Machine / Rubber Sheet Calendering Machine

Wechat / Whats App:+86-1836423733

Product Description

Application:

Rubber calendering machine is mainly used for: Textile (cloth, canvas, etc.) of glue and eraser; steel cord adhesive; rubber compression and pressure type; cord attached to the fit of the isolation film and multilayer film.

Technical spec.:

Model		XY-31 630	XY-31 1120A XY-3 1120A XY-3 1120A	XY-31 1400	XY-31 1200 XY-31 1500
Working diameter of rolls	mm	230	360	400	450
Working length of rolls	mm	630	1120	1200	1200(1500)
Speed ratio		1:1:1 1:1.42:1	1:1:1 0.733:1:1 0.733:1:0.733	1:1:1 1:1.385:1.385 1:1.385:1	1:1:1 1:1.5:1
Working linear speed of middle roll(m/min)	mm	7.97	7.0-21.06	8.8-26.39	8.36-25.08
Adjusting nip range ratio	mm	0-7	0-10	0-10	0-6
Min.Calendaring product thickness	mm	0.2	0.2	0.2	0.2
Calendaring product width	mm	500	920	1000	1100(1400)
Driving motor power	KW	7.5	45	55	75/25
Overall Size	mm	2570×740×1500	5550×1640×2120	6350×1410×2385	6900×1910×2750
Weight	kg	3200	14000	18000	17000

Main Features:

1. The machine is made of chilled castiron alloys,whose work surface has high hardness,so it is wear-resistant and durable.

2. While using,the steem,cooling water and heat-conducting oil can be passed into the roller's cavity,so that the working temparature can be adjusted in order to meet the technological requirement.

3. Roller space can be adjusted both by manual or electric mode.

4. Roller bearings' lubricating can adopt drier oil or dilute oil.

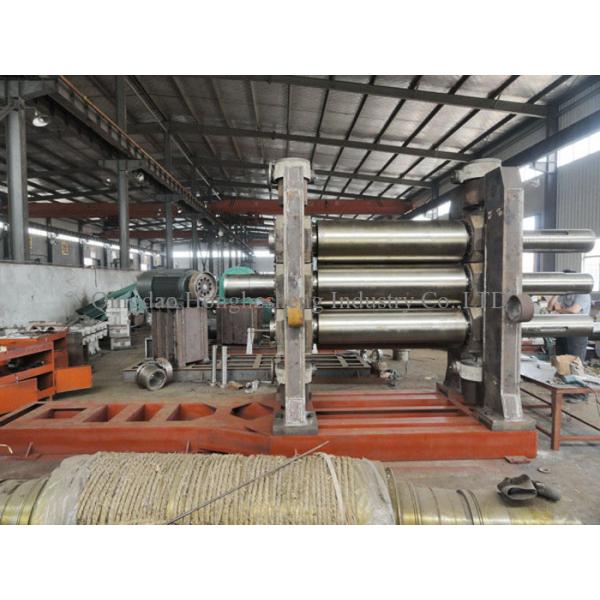

Detailed picture

Dia 360mm Three Roll Rubber Calender Machine Rubber Sheet Calendering Machine
